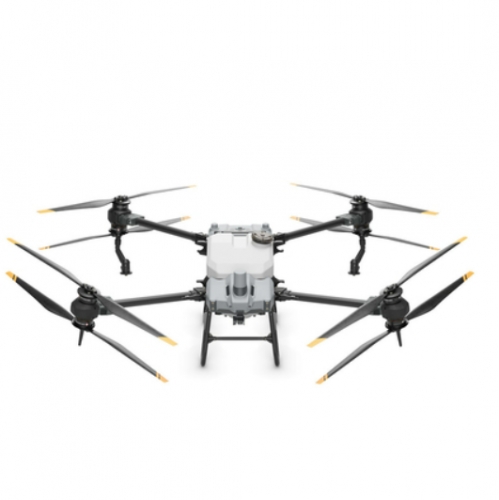

DJI AGRAS T40 AGRICULTURAL DRONE

Ready To Fly Kit

One For All

• 50KG SPREADING PAYLOAD | 40KG SPRAYING PAYLOAD
• ACTIVE PHASED ARRAY RADAR + BINOCULAR VISION
• DUAL ATOMIZED SPRAYING SYSTEM
• SUPPORTS FLIGHT SPRAYING/SPREADING AND RC MAPPING
• CORE MODULES IPX6K
• EFI GENERATOR 15% FUEL SAVING
• 52 ACRES (21.3 HECTARE) PER FLIGHT HOUR
• 36 FT (11M) SWATH (SPRAY WIDTH)

The AGRAS T40 is equipped with the revolutionary Coaxial Twin Rotor design, enabling it to carry a spray load of 40 kgand a spread load of 50 kg (70 L). The aircraft is built in with a Dual Atomized Spraying System, DJI Terra, Active Phased array Radar and Binocular Vision. It supports multiple missions from surveying, mapping, to spraying and spreading, helping you achieve ultimate precision in your agricultural operations.

The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg. Its foldable design reduces the aircraft size by 70% for greater portability.

The all-new dual atomized centrifugal nozzles have two spinners that make the droplets more uniform in size, avoid splashing, and dripping, and prevent clogging when spraying powder-based chemicals.

The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable. Quick disassembly by hand for easy cleaning

The dual atomized spray disc ensures even droplets and more efficient pesticide usage. The proprietary centrifugal valve prevents leakage, avoids over-fertilization, and reduces pesticide use while protecting the environment

The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50 m[8] allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles[9].

Enhanced spreading efficiency for superior performance

The aircraft is equipped with a weighing sensor that monitors the spread quantity and remaining payload

The spreading device can be dismantled in 3 minutes and washed with water.

Fully enhanced remote controller for smoother, faster mapping

The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.

In the box:

• T40 x 1
• T40 Battery x 2
• T30/T40 Charger (same) x 1
• 2600W Cable x 2
